3 LEAF SPRING, DOUBLE EYE 9/16 " , 23-1/4" L X 1-3/4" W, FOR 3.5K AXLE

Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 3,500-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.

Features:

Leaf spring acts as part of your trailer's suspension system
Provides attachment point for your trailer's axle
Multiple leaves allow flexibility to absorb road shock
Allows for a smooth ride
Reduces wear and tear on trailer
Ensures level ride on bumpy and uneven surfaces
Sturdy steel construction
Nylon bushings included
Pre-mounted hangers or aftermarket hanger kit (sold separately) required for installation
Spring attaches to hanger mounted on trailer frame at one end
Other end connects to shackle straps suspended from hanger or equalizer

Specs:

Quantity: 1 leaf spring
Spring capacity: 1,750 lbs
Axle capacity: 3,500 lbs

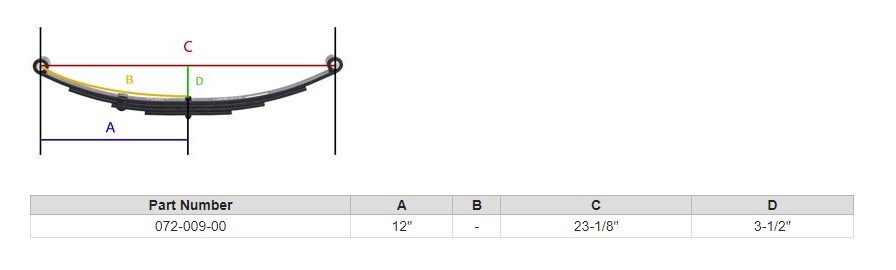

Length from center of spring eye to center of spring eye (unloaded): 23-1/8"
Spring width: 1-3/4"
Eye diameter with bushing: 9/16"
Eye diameter without bushing: 11/16"
Leaf thickness: 1-1/16"
Number of leaves: 3

072-009-00 D
