CE SMITH AXLE TIE PLATE KIT FOR 1-1/2" SQUARE AXLE, 3-3/8"L U-BOLTS, ZINC

Highlights

Fits 1-1/2" Square Axles: Secures your axle to the leaf springs for a solid connection.
3-3/8" Long x 3/8" Diameter U-Bolts: Clamps tight for dependable axle hold.
Zinc-Plated with Galvanized Plates: Resists rust and corrosion, ideal for boat trailers.
Plates for 1-3/4" Springs: Matches common spring widths for proper alignment.
Complete Mounting Kit: Includes 4 U-bolts, 2 plates, and 8 nuts and washers.
Torque to 30-50 ft-lbs: Ensures secure fastening without over-tightening.

Specs

Application

Application: 1-1/2" wide, square axle

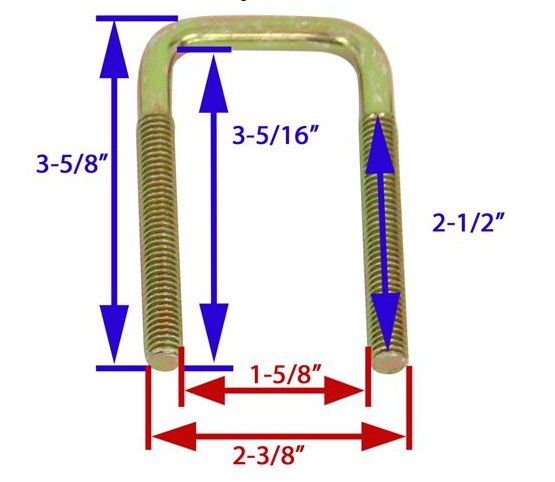

U-Bolt Dimensions
Inner: 3-5/16" long x 1-5/8" wide
Overall: 3-5/8" long x 2-3/8" wide
Thread dimensions: 2-1/2" long x 3/8" diameter

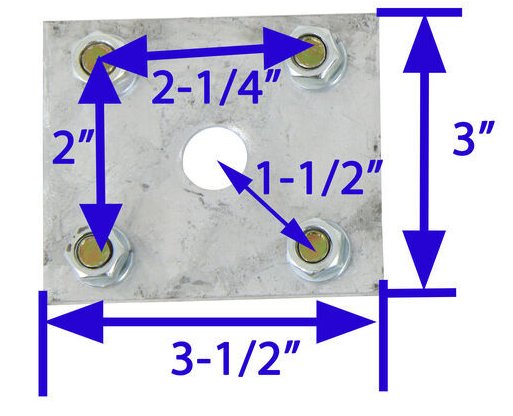

Mounting Plate Dimensions

Mounting plate dimensions: 3-3/8" long x 3" wide

Kit Contents

Kit includes: 4 U-bolts
U-bolt plates: 2 plates for 1-3/4" springs
Hardware: (8) 3/8" hex nuts and washers
