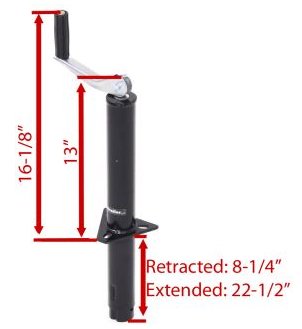

RAM A-FRAME JACK, 2K LIFT, 3K SUPPORT, TOPWIND, 14-1/4" LIFT, 8-1/4" BRACKET HEIGHT

Height and Travel

Bracket height (from bottom of inner tube - with hole still usable - to bottom of bracket): 8-1/4" Retracted
Bracket height (from bottom of inner tube - with hole still usable - to bottom of bracket): 22-1/2" Extended
Travel: 14-1/4"

Clearance

Clearance (from bottom of bracket to top of handle mount): 13"
Clearance (from bottom of bracket to top of handle): 16-1/8"

Dimensions

Outer tube diameter: 2-1/4"
Inner tube diameter: 2"
Handle radius: 6-3/8"
Bracket height (from bottom of inner tube - with hole still usable - to bottom of bracket): 8-1/4" Retracted 22-1/2" Extended
Travel: 14-1/4"
Clearance: 13" From bottom of bracket to top of handle mount
Clearance: 16-1/8" From bottom of bracket to top of handle
Outer tube diameter: 2-1/4"
Inner tube diameter: 2"
Handle radius: 6-3/8"
Lift capacity: 2,000 lbs
