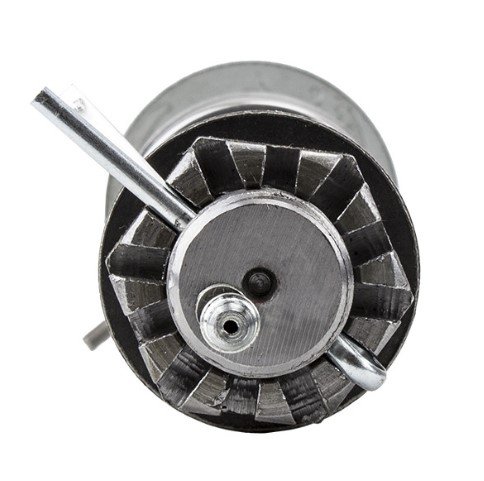

TIEDOWN TORSION AXLE SPINDLE, BOLT ON, 1-3/8" X 1-1/16" TAPERED

Spindle - 3500lb Axles - 1-3/8" x 1-1/16" tapered.
For use with Dexter Torsion Axles that use Removable Spindles. Pre-drilled shaft includes a 'Super Lube' grease zerk fitting. Includes replaceable Stainless Steel Sleeve with Relief Hole for grease seal surface (Dimension 'E' ). Includes torsion arm mounting nut, washer & cotter pin and hub mounting nut, washer & cotter pin hardware. Uses 1.5" Socket to remove back nut.
Specs:
A = 1.75"
B = 8.10"
C = .91"
D = 4.11"
E = 1.72"
F = 1.38"
G = 1.06"

Torsion arm mounting taper is from 1.75" to 1.43" over 1.85"
Inner Bearing # L68149
Outer Bearing # L44649
Load Rite # 6043.12

Product Features and Specifications

Fits Tie Down Eliminator torsion axles that use removable spindles
Turned from high tensile, C1045 steel and 100% quality control checked for accuracy
Uses 68149 and 44649 bearings (not included)

Similar to Loadrite 6043.12

Includes:

(2) 1AN - Axle nut
(2) 1AW - Washer Non-Plate
(2) F5097 - Cotter pin
(1) Spindle with grease zerk
